Balizamiento
Relación de faros y balizas

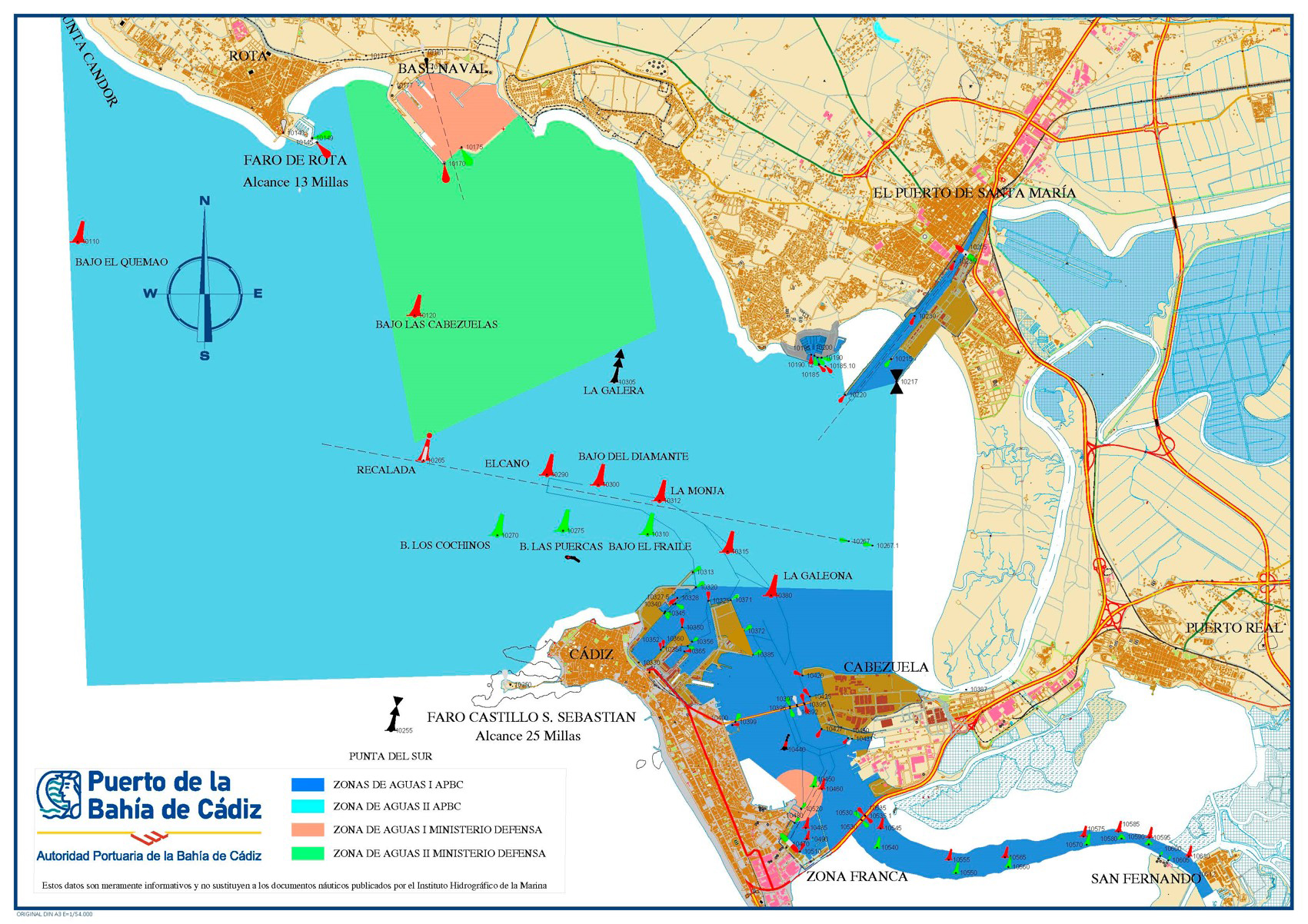

Bahía de Cádiz | ||||
---|---|---|---|---|
Boyas | ||||
Nº | Nombre y situación | Color | Características | Alcance nominal |
10.110 | El quemado | Rojo | GpD(2)R9sg.. | 7 |
10.120 | Las cabezuelas | Rojo | GpD(4)R10 sg.. | 7 |
10.120-a | Boya Odas | Amarilllo | GpD(5) 30 dpm | 3 |
10.255 | Punta del Sur | Blanco | GpCt(9)B15 sg | 5 |
10.265 | Recalada | Blanco | DLB 10 sg. | 7 |
10.267 | Luz Anterior | Verde | QG 1 sg. | 7 |
10.267-I | Luz Posterior | Verde | OcG 3 sg. | 7 |
10.270 | Los cochinos | Verde | DV 3 sg. . | 5 |
10.275 | Boya núm.3(frente Las Puercas) | Verde | GpD(2)V 4 sg. | 5 |
10.290 | Elcano | Rojo | DR 1,5 sg. | 5 |
10.300 | El diamante | Rojo | GpD(2)R4 sg. | 5 |
10.305 | La galera | Blanco | CtB 1 sg. | 3 |
10.310 | El fraile | Verde | GpD(3) 13 sg. | 5 |
10.312 | Boya ángulo alineación 1-2 (la monja) | Rojo | GpD (3) R 10 sg. | 5 |
10.315 | Canal entrada | Roja | GpD(2+1)R7 sg | 3 |
10.380-a | Obras | Roja | Ctr 1sg. | 4 |
10.450 | Zona Franca (estribor) | Verde | GpD(3) V 9 sg. | 3 |
10.460 | Zona Franca (babor) | Rojo | GpD(2+1) R 12 sg. | 3 |
10.485 | Zona Franca (interior) | Rojo | GpDR(2+1) 10 sg. | 1 |
10.490 | Zona Franca (interior) | Rojo | Ctr 1 sg. | 1 |
10.540 | Carraca núm.1 | Verde | DV 3 sg. | 4 |
10.545 | Carraca núm.2 | Rojo | DR 4 sg. | 4 |
10.550 | Carraca núm.3 | Verde | GpD(2) V 8 sg. | 4 |
10.555 | Carraca núm.4 | Rojo | GpD (2) R 7sg | 4 |
10.560 | Carraca núm.5 | Verde | GpD(3) V9 sg. | 4 |
10.565 | Carraca núm.6 | Rojo | Gp Ct (3) R6sg | 4 |
10.570 | Carraca núm.7 | Verde | GpD(4) V 12 sg. | 2 |
10.575 | Carraca núm.8 | Rojo | GpD(4) R 10 sg. | 2 |
10.580 | Carraca núm.9 | Verde | DV 3 sg. | 2 |
10.585 | Carraca núm.10 | Rojo | DR 3 sg. | 2 |
10.590 | Carraca núm.11 | Verde | GpD(2) V 6 sg. | 2 |
10.595 | Carraca núm.12 | Rojo | GpD(2) R 6 sg, | 2 |
10.610 | Carraca núm.14 | Rojo | GpD(3)R 10 sg | 2 |
Faros | ||||
Nº | Nombre y situación | Color | Características | Alcance nominal |
10.250 | Faro castillo San Sebastián | Blanco | GpD(2)B 10 sg. | 25 |
Balizas | ||||
Nº | Nombre y situación | Color | Características | Alcance nominal |
10.427 | M.extremo Sur La Cabezuela | Rojo | GpD(4) 12 sg | 1 |
10.313 | Extremo Dique mar de leva | Verde | GpD (4)V. 10 sg. | 3 |
10.320 | Dique San Felipe | Verde | DV 3 sg | 5 |
10.325 | Dique de Levante | Rojo | DR 2 sg | 5 |
10.327 | Puerto América | Verde | GpD (4) V 16 sg. | 1 |
10.327.5 | Pantalán Rompeolas | Verde | (2+1) | 1 |
10.330 | Enfilación muelle ciudad | Blanco | OcB 5 sg | 3 |
10.340 | Espigón náutico | Verde | FV | 1 |
10.345 | Muelle Reina Sofía | Verde | OcV 2 sg | 2 |
10.350 | Extremo Muelle Comillas | Rojo | GpDV 2+1 12 sg. | 2 |
10.352 | Tacón Ro-Ro NE (muelle Marqués de Comillas) | Rojo | GpD(4) 10 sg. | 1 |
10.354 | Tacón Ro-Ro SW (Muelle Marqués de Comillas) | Rojo | GpD(4) 10 sg. | 1 |
10.356 | Angulo Noreste | Verde | GpCt(4)V 12s. | 3 |
10.360 | Pesquero Poniente | Verde | D 6 sg | 1 |
10.365 | Pesquero Levante | Rojo | GpD(2)6 sg | 1 |
10.371 | Muelle Extremo Norte Nueva Terminal Contenedores | Verde | Ct 1 sg. | 5 |
10.372 | Muelle Extremo Sur Nueva Terminal de Contenedores | Verde | Fl 4 sg. | 5 |
10.385 | Muelle nº 5 extremo | Verde | GpD(2) 7 sg | 3 |
10.400 | Dique P.D.Viento de Levante | Rojo | Ct 1 sg | 1 |
10.420 | Espigón off-shore | Rojo | GpCt(2) R 8 sg | 2 |
10.425 | Muelle Cabezuela extremo Norte | Rojo | GpD(2+1)15 sg | 1 |
10.430 | Muelle rampa ro-ro | Rojo | DR 5sg. | 1 |
10.431 | Angulo Este Muelle Sur La Cabezuela | Verde | ISO 1 sg. | 1 |
10.440 | Castillete Bajo de La Palma | Blanco | GpD(2) 10 sg | 1 |
10.470 | Enfilación Zona Franca | Blanco | Iso B 2 sg | 3 |
10.471 | Enfilación Zona Franca | Blanco | Oc B 4 sg. | 3 |
10.480 | Muelle Poniente Z.Franca | Verde | GpD (2+1) 15 s | 1 |
10.510 | Muelle Ribera Z.Franca | Rojo | DR 3 sg. | 3 |
10.520 | Puntales espigón | Verde | GpD(4) V 10 sg. | 3 |
10.530 | Puente J.L.Carranza lado W | Verde | 2 Ctv 1 sg. | 2 |
10.535 | Puente J.L.Carranza lado E | Rojo | 2 Ctr 1 sg. | 2 |
10.600 | La clica exterior | Verde | GpD(3) V 9 sg | 2 |
10.605 | La clica interior | Verde | GpD(4) V 10 sg | 2 |
10.612 | Pantalán machos de bombos | Verde | DV Gs 6 sg. | 1 |
El Puerto de Santa María | ||||
Nº | Nombre y situación | Color | Características | Alcance nominal |
10.205 | Luz sectores precisión con eje al 040o | Rojo Blanco Verde | F1 RWG 6 sg. | 5 |
10.215 | Escollera interior.Extr | Verde | GpD(2)V 7 sg | 3 |
10.217 | Escollera de Levante.Extr | Blanco | GpCt(9) B 15 sg | 3 |
10.220 | Escollera de poniente.Extr | Rojo | DR5 sg | 5 |
10.230 | Pilar en el agua escollera de poniente | Rojo | GpD(2) R 5 sg. | 1 |
10.235 | Muelle Pesquero.Ang | Rojo | GpDV 10 sg. | 2 |
Rota | ||||
Nº | Nombre y situación | Color | Características | Alcance nominal |
10.140 | Faro | Blanco | Oc B4 sg | 13 |
10.145 | Puerto deportivo-pesquero-dique abrigo extremo | Rojo | GpD(3) R 10 sg | 9 |
10.149 | Contadique Extremo | Verde | Q(6) G 12 sg. | 3 |
Base Naval de Rota | ||||
Nº | Nombre y situación | Color | Características | Alcance nominal |
10.160 | Enfilación anterior | Blanco | CtB 1 sg | 9 |
10.161 | Enfilación posterior | Blanco | OcB B 3 sg. | 11 |
10.170 | Rompeolas poniente | Rojo | GpOc(2) R 6 sg. | 4 |
10.175 | Rompeolas levante | Verde | GpCt (3) V 7 sg | 6 |
10.177 | Enfilación diurna 320,5° (Diurna).- Anterior | |||
10.177.1 | Enfilación diurna 322°.- Posterior | |||
Puerto Sherry | ||||
Nº | Nombre y situación | Color | Características | Alcance nominal |
10.180 | Boya | Amarillo | GpD(5) | 2 |
10.185 | Dique de poniente | Rojo | Oc R 4 sg. | 4 |
10.190 | Entrada antedársena | Verde | Oc V 5 sg. | 3 |
10.195 | Dársena estribor | Verde | Ct V 1 sg. | 1 |
10.200 | Dársena babor | Rojo | Ct R 1 sg. | 1 |
Sancti Petri | ||||
Nº | Nombre y situación | Color | Características | Alcance nominal |
10.625 | Punta del arrecife | Blanco | GpCt (9) 15 sg. | 3 |
10.630 | Castillo Sancti Petri | Blanco | DB 3 sg. | 9 |
10.640 | Enfilación Coto S.José anterior | Blanco | DB 5 sg. | 6 |
10.641 | Enfilación Coto S.José posterior | Blanco | Gp Oc (2) B 6 sg. | 6 |
10.650 | Enfilación Punta del Boquerón anterior | Blanco | DB 5 sg. | 6 |
10.651 | Enfilación Punta del Boquerón posterior | Blanco | Gp Oc (2) B 6 sg. | 6 |
10.652 | Bajo de poniente | Rojo | DR 5 sg. | 2 |
10.653 | Piedra larga | Verde | DV 5 sg. | 2 |
10.642 | Baliza nº 1 en el agua | Verde | Fl(3) G 9 sg. | 5 |
10.643 | Baliza nº 2 en el agua | Rojo | Fl(3) R 9 sg. | 5 |
10.644 | Baliza nº 3 en el agua | Verde | Fl(4) G 11 sg. | 3 |
10.645 | Baliza nº 4 en el agua | Rojo | Fl (4) R 11 sg. | 3 |
10.653-10 | Boya nº 6 | Rojo | Fl (2) R 7 sg. | 3 |
10.653-11 | Boya nº 7 | Verde | Fl (2) G 7 sg. | 3 |
10.653-13 | Boya nº 8 | Rojo | Fl(3) R 9 sg. | 3 |
10.653-14 | Boya nº 9 | Verde | Fl(3) G 9 sg. | 3 |
Puerto de Gallineras | ||||
Nº | Nombre y situación | Color | Características | Alcance nominal |
10.653-50 | Pantalán Flotante Extremo SW | Verde | Ct V 1s | 1 |
10.653-54 | Boya | Roja | Ct R 1 sg. | 1 |
10.653-58 | Naufragio Boya | Blanco | DB | 2 |
CA 7017.4 | pantalán Flotante Extremo SE | Rojo | GpD(3) R 10 sg | 3 |
CA 7017.5 | Boya Estribor 1 | Verde | Gp D(2) V | 1 |
CA 7017.6 | Boya Estribor 2 | Verde | GpD(2+1) V | 3 |
CA 1017.7 | Boya Babor 1 | Rojo | GpD(2) R | 1 |
CA 7017.8 | Boya Babor 2 | Rojo | Fl R | 3 |
CA 7017.9 | Dique Salineta Ext.NE | Rojo | GpD(4) R 10 sg. | 1 |
Cabo Roche | ||||
Nº | Nombre y situación | Color | Características | Alcance nominal |
10.655 | Faro Cabo Roche | Blanco | Gp D(4) B 24 sg. | 20 |
Puerto de Conil | ||||
Nº | Nombre y situación | Color | Características | Alcance nominal |
10.670 | Dique Abrigo Extremo | Rojo | Fl(2) 8 sg. | 5 |
10.671 | Dique Martillo Extremo | Rojo | Fl(2) R 8 sg. | 3 |
10.672 | Contradique Extremo | Verde | LFl G 7 sg. ( apa- gada) | 3 |
10.674 | Martillo interior | Rojo | Fl(2) R 8 sg. | 2 |
Cabo Trafalgar | ||||
Nº | Nombre y situación | Color | Características | Alcance nominal |
10.690 | Faro Cabo Trafalgar | Blanco | Gp D(1+2) B 15 sg. | 22 |
Barbate | ||||
Nº | Nombre y situación | Color | Características | Alcance nominal |
20.022 | Faro Barbate | Blanco | Gp D (2) BR 7 sg. | 10 |
20.030 | Dique poniente extremo | Rojo | Fl R 4 sg. | 5 |
20.050 | Contradique extremo | Verde | Fl G 3 sg. | 2 |
20.052 | Boya nº 1 | Verde | Apagada | 5 |
20.053 | Boya nº 2 | Rojo | Fl(2) R 8 sg. | 5 |
20.055 | Boya nº 4 | Rojo | Fl(3) R 9 sg. | 2 |
20.055-5 | Barrera antioleaje | Rojo | Fl(2+1) R 21 sg. | 2 |
20.056 | Contradique muelle interior Angulo W | Rojo | Fl(3) G 15 sg. | 1 |
20.058 | Puerto Deportivo a estribor | Verde | Fl(2) G | 2 |
20.059 | Puerto Deportivo a babor | Rojo | FlR 4 sg. | 2 |
20.060 | Rio boya | Amarillo | Fl(4) Y 11 sg. | – |
20.061 | Rio Barrera flotante | Amarillo | 7Fl(4) Y 20 sg. | 1 |
